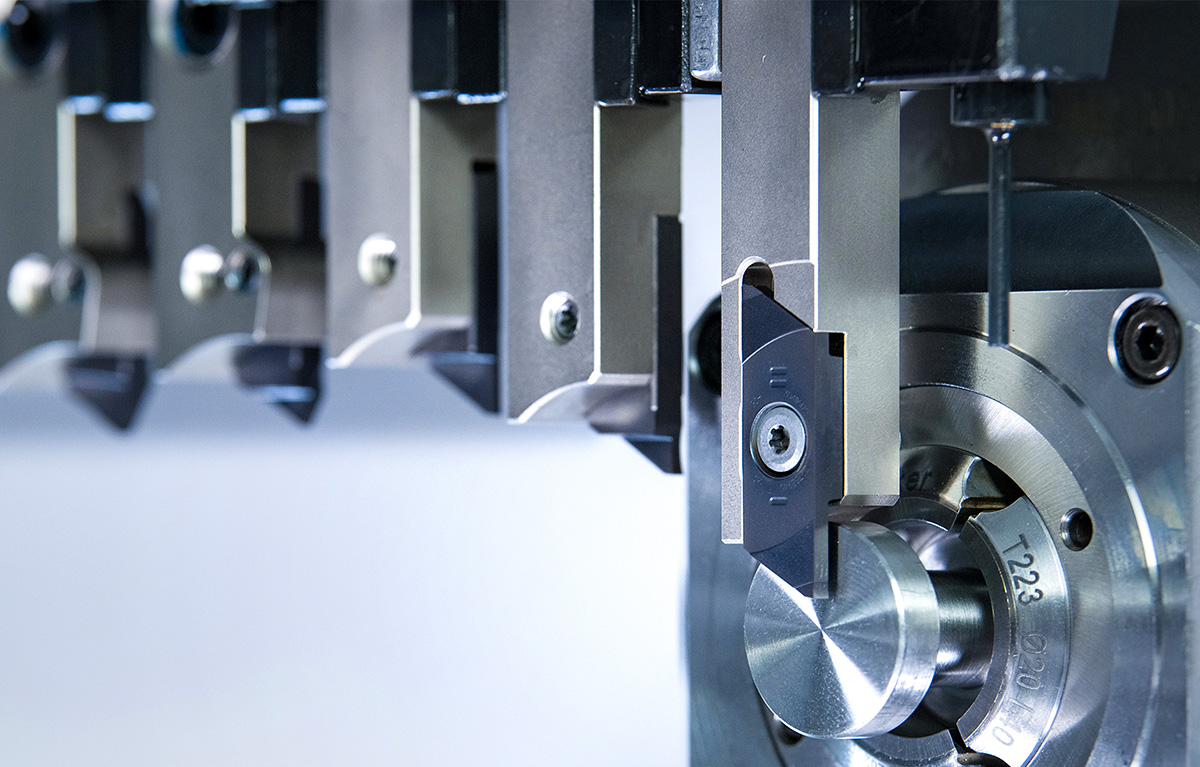

With the new System 208, Gühring is launching a grooving system that has been specially developed for sliding headstock lathes. Its special geometry, high interchangeability and proven service life advantages specifically meet the requirements for machining complex micro-turned parts.
Compact design for confined spaces
Sliding headstock lathes often operate in extremely confined spaces. This is exactly where System 208 comes in. The rhombic, ground indexable insert with two cutting edges is designed so that it can be used precisely even in small machines with bar feeders. With a maximum grooving depth of 8mm, the system covers common machining operations from parting off to grooving and longitudinal turning.
For the user, this means a tool that covers a wide range of applications in a compact form without compromising on stability or accuracy. In field trials, the tools used in the 208 system showed increased tool life of up to 30 per cent compared to the competition. In addition to longer tool life, users benefited from shorter cycle times and more stable processes. For customers, this means fewer tool changes, lower part costs and stable series production.
High process reliability thanks to precise interface
A central feature of the System 208 is its high-precision interface with changeover accuracy of ±0.015 mm. This precision ensures that the cutting edges are positioned exactly after each insert change. In practice, this reduces set-up times and minimises scrap.
The newly developed clamping screw with double-sided Torx-Plus enables quick changes directly in the machine. This saves time during the ongoing process and makes handling easier for the operator.
Focus on customer benefits
The System 208 offers advantages for various industries including the medical sector, electronics and robotics and connector technology where reliable machining of demanding materials is pre-requisite. In all these industries, the System 208 ensures higher machine availability, longer running times per
tool and a reduction in the total cost per component.
For further details contact Gühring South Africa on TEL: 041 372 2047/46/43/38 or visit www.guhring.co.za
