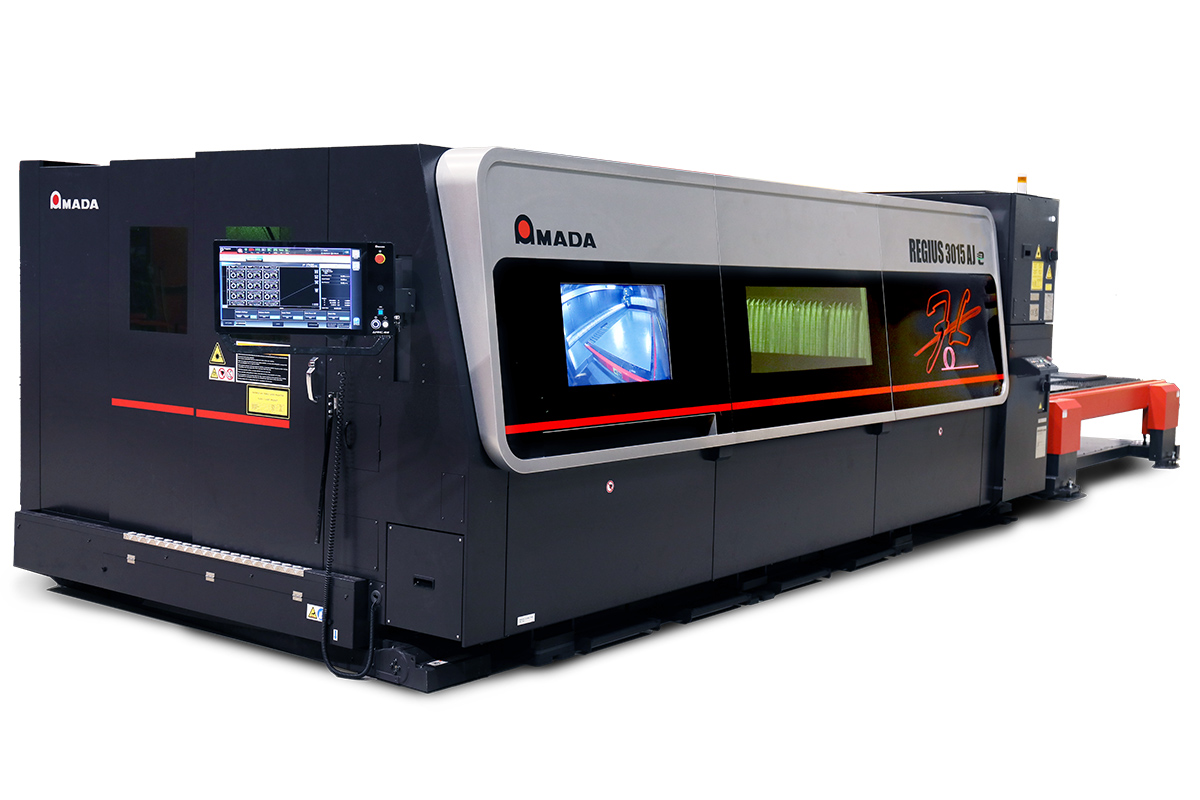

Amada’s REGIUS 3015 AJe fiber laser, now with up to 26kW, combines advanced features, ENSIS technology, and a unique engine design for unmatched speed, precision, and cutting quality across material thicknesses.

Amada says its REGIUS 3015 AJe fiber laser cutting system provides users with an incredibly fast and capable method for cutting thin to thick material. Thanks to the higher wattage and the world’s fastest 3-axis linear drive system plus a variety of powerful features, the REGIUS delivers reduced setup times and the utmost in cutting quality. Also available as a 6kW, 9kW and 12kW machine, customers can choose the power level best suited for their needs.

Backed by Amada’s proprietary ENSIS technology, which automatically changes the laser beam mode according to the material type and thickness being cut, machine setup is simple, regardless of the operator’s experience level. And, thanks to the proprietary engine design that combines only two modules without the use of a combiner, users can expect a beam quality superior to other options in the same wattage class. The unique engine design also allows for cutting speeds comparable to even higher wattage machines while providing unmatched edge quality.

REGIUS advantages:

• Autonomous features, such as the i-Nozzle checker, regularly inspects nozzles and automatically replaces them if any damage is detected;
• To further protect operations from processing defects, the i-Optics sensor detects debris on the protection glass, which can affect cut quality;
• For worry-free, fast processing, Amada’s i-Process Monitoring technology analyses the optimal beam wavelength to prevent cutting failures. i-Process also detects piercing penetration in order to immediately start cutting and reduce cycle times;
• In the event of a tip-up, the REGIUS’s laser head tilts to reduce any potential damage incurred in a collision during high-speed cutting.

To accommodate machine operators of varying experience levels, Amada’s large touchscreen AMNC 4ie control makes the retrieval of parts, programmes and nests quick and easy. AMADA’s Eco Cut technology produces fast piercing and cutting while simultaneously reducing the gas usage required for operations.

For high quality on sharp edges, Amada’s Smart Edge feature automatically modifies edge cutting parameters without any operator intervention. As a turnkey solution, the REGIUS is replete with all items necessary for installation, training and production.

For further details contact Amada Johannesburg on TEL: 011 453 5459 or visit www.amada.co.jp
